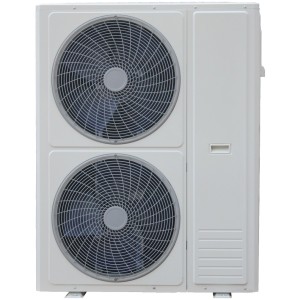

11KW DC Inverter Air to Water Heat Pumps(SHAW-11DM1)

11KW DC Inverter Air to Water Heat Pumps(SHAW-11DM1)

11KW DC Inverter Air to Water Heat Pumps(SHAW-11DM1)
11KW DC Inverter Air to Water Heat Pumps(SHAW-11DM1)11KW DC Inverter Air to Water Heat Pumps(SHAW-11DM1)11KW DC Inverter Air to Water Heat Pumps(SHAW-11DM1)11KW DC Inverter Air to Water Heat Pumps(SHAW-11DM1)11KW DC Inverter Air to Water Heat Pumps(SHAW-11DM1)
CategoriesDC Inverter Heat Pumps
BrandSuoher Inverter Heat Pumps Manufacturer
ModelSHAW-11DM1
Net size1110*450*850(mm)
Power supply220V/1PH/50Hz
Pipe connectionDN25
Net weight96KG
Gross weight111KG
DC Fan motor80W
FOB portRongqi, Shunde
Terms of PaymentL/C, T/T
Download
Update TimeOct 10,2024
Detail Information

1.      DC inverter heat pumps for heating, cooling and hot water.

2.      5 modes: heating only, heating and hot water, hot water only, coolingonly, cooling and hot water.

3.      6KW, 9KW, 11KW, 13KW heating capacity.

4.      Receives ON/OFF signal from room thermostat, master controller and smartgrill system, to save more energy.

5.      Heating curves for more accurate temperature control.

6.      With control for back-up electric heater.

7.      With control for 4-way valve to switch between heating/cooling and hotwater circuits.

8.      Built-in energy-class A circulating pump.

9.      Built-in water flow switch.

10.  Built-in auto air discharge valve.

11.  Automatically variable fan speed in 3 speeds to optimize efficiency.

12.  Fast plugs for wiring between indoor unit and outdoor unit.

13.  Low noise design with noise jacket for compressors, low noise fans andstrong casing to reduce vibration and noise.

14.  We offer OEM service including different components, casing design,painting color, controller functions etc.



Model



SHAW-6DM1

SHAW-9DM1

SHAW-11DM1

SHAW-13DM1

Technical Parameters

Max. heating capacity

kW

7.2

10.8

14.3

16.8

Min. heating capacity

kW

2.5

4.1

4.9

5.8

Rated heating capacity

kW

6

9

11

13

Rated heating power input

kW

1.35

2.1

2.58

3.05

COP



4.44

4.29

4.26

4.26

Rated cooling capacity

kW

4.8

6.5

7.8

9.1

Rated cooling power input

kW

1.65

2.25

2.68

3.25

EER



2.91

2.89

2.91

2.80

Max. water temp.

60

Rated water temp.

55

water flow

m3/h

1

1.50

1.90

2.20

pressure drop

Kpa

18

22

24

26

Net weight

kg

72

90

96

105

Gross weight

kg

84

105

111

120

Noise

dB(A)

50

52





Pipe connection

mm

DN20

DN25

Power supply



220V/1PH/50Hz

220V/1PH/50Hz

220V/1PH/50Hz

220V/1PH/50Hz

Net size

mm

1110*450*700

1110*450*850

1110*450*850

1080*430*940

Package size

mm

1200*520*850

1200*520*990

1200*520*990

1180*500*1080

Standard Features

Compressor

brand

Mitsubishi

quantity

1

Condenser

plate heat exchanger

Evaporator

Louverd&hydrophilic fin-tubes

4-way valve

Yes

Flow switch

Yes

Circulation pump

Built-in energy clasee A water pump

Expansion valve

Electionic expansion valve

DC Fan motor

40W

80W

80W

170W

High pressure switch

4.2/3.6MPa

Low pressure switch

0.02/0.15MPa

Working mode

cooling, heating, hot water, cooling+hot water, heating+hot water

Refrigerant

R410a

     Remark

1、Working temp.-25~43

2Test conditionheating mode Ambient temp.7/6℃,inlet/ outlet water temp.30/35℃;

                               cooling mode Ambient temp.35/24℃,inlet/ outlet water temp.12/7
